Low Voltage Supplies

Such supplies are often realised with dedicated integrated circuits nowadays but it's still interesting to give a look at old designs to understand the basics.

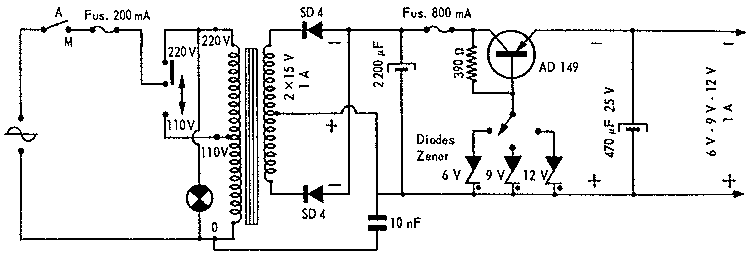

A fixed supply of 6, 9 or 12V, max output 1A.

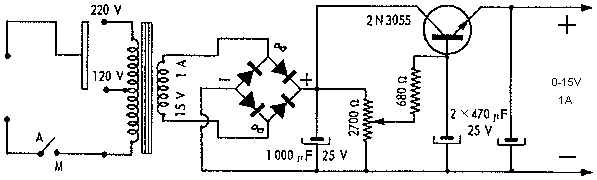

A variable supply 0-15V, max output 1A.

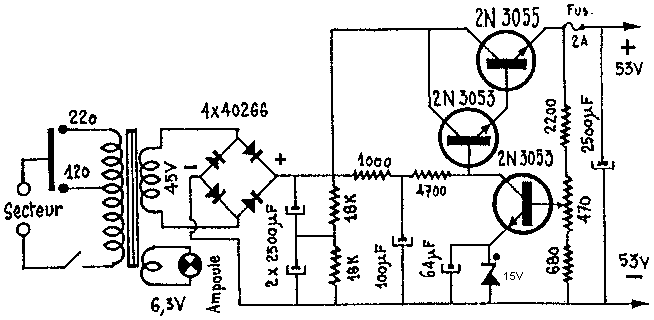

A fixed supply 53V, max output 2A.

Solid State 2

Schematics by Rainer zur Linde from his book "Build your own Audio Valve Amplifiers".

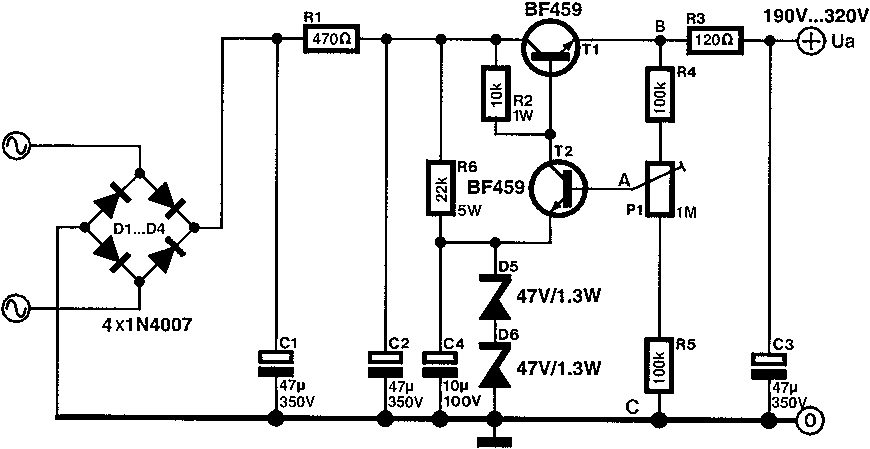

Output 190-320V up to 50mA.
